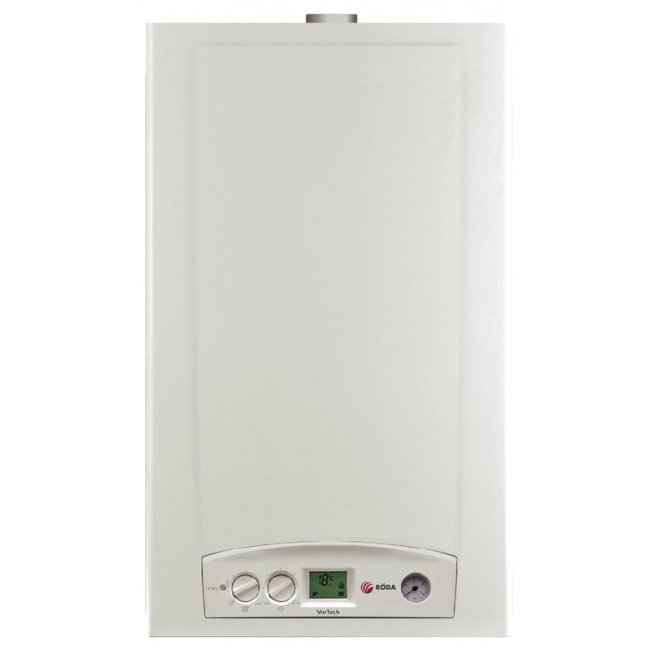

VorTech One OC 24

Gas Boiler RÖDA VorTech

• Modern design
• Compact dimensions (only 255 mm deep!)
• Available with open (OC) and closed (CS) combustion chamber
• Bithermal heat exchanger or two separate heat exchangers (Duo series)
• Available in single circuit version (R series)
• Electric ignition and flame control
• Full LCD display
• Frost protection
• Ergonomic rotary controls
• Friendly intuitive interface
• System of continuous smooth modulation of power
• Wide range of additional equipment
• Climate control (option)
• Possibility of conversion to liquefied gas
• Protection class IP X5D
• Perfect design.

Keep up with the times with Roda's new gas mounted boilers . A large information display with a clear indication and convenient rotary controls guarantee maximum comfort in using the boiler.

High energy efficiency. A modern injection burner, together with a system of constant smooth power modulation, provides a high energy efficiency class *** according to the European Directive 92/42 CE.

Wide range of capacities. Boilers for heating Roda VorTech are produced in the power range from 18 to 32 kW in two types of execution - with open and closed combustion chambers. You can easily choose the power you need for heating both an apartment and a private house. The availability of models with both bithermic and two separate heat exchangers offers solutions for both soft tap water and water with a high content of hardness salts.

The presence of single-circuit models. In the outputs 18kW, 23kW, 24kW and 28kW, the VorTech boiler is available in a single circuit version. With an external three-way valve kit, these models can be easily connected to an external boiler.

Coordination with the heating system. The electronic board of the boiler allows you to adjust the main parameters of the equipment for maximum adaptation to the heating system, which increases the overall efficiency of the system. And continuous power modulation in heating and hot water modes maintains the temperature set by the user with a high degree of accuracy.

Boiler condition monitoring. During operation, the automation monitors all operating parameters and, in the event of an emergency, displays a warning in the form of a digital indication.

Easy access for maintenance. Removable front panel of the boiler allows quick maintenance of the equipment without the tedious process of dismantling. The electronic board of the boiler has an IPX5 protection class and, if necessary, can be easily rotated on special hinges.

Frost protection. When the temperature drops to 5C in the room where the boiler is installed, the burner is automatically switched on and the temperature of the boiler is maintained at least 15C. This prevents freezing of the boiler elements and their destruction.

Jamming protection. With a long downtime of the equipment, a short-term activation of the circulation pump and the three-way valve drive occurs. This prevents these elements from jamming and their trouble-free operation.

Large selection of additional equipment.

To expand the possibilities and increase the comfort of use, the following optional devices are connected to the VorTech series boilers:

1. room thermostats with “clean type” contacts, mechanical or programmable.
2. modulating programmable room thermostats.
3. remote controls.
4. outside temperature sensor.
