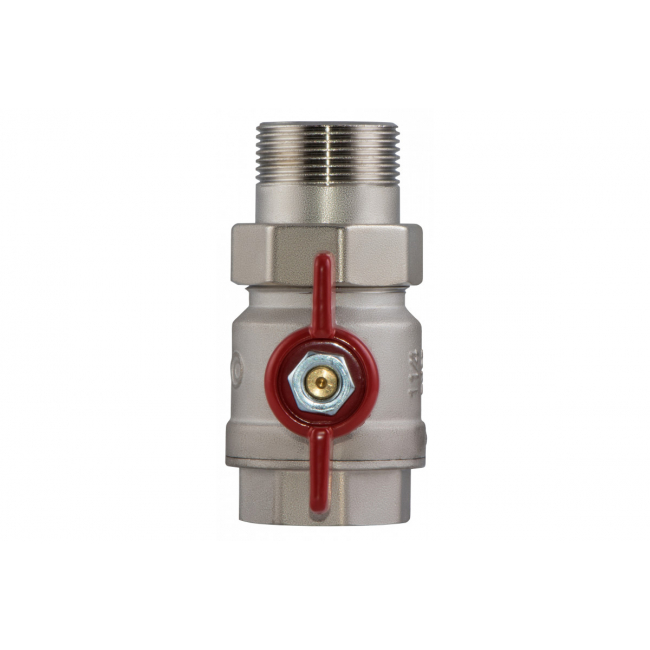

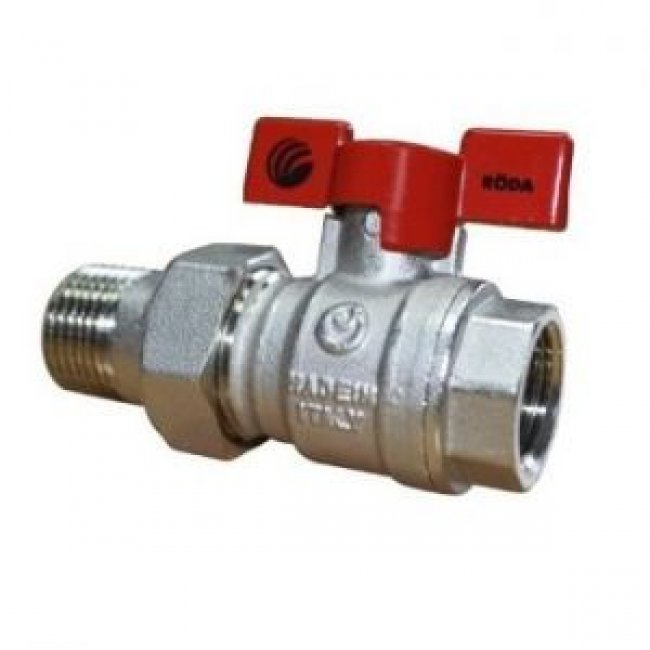

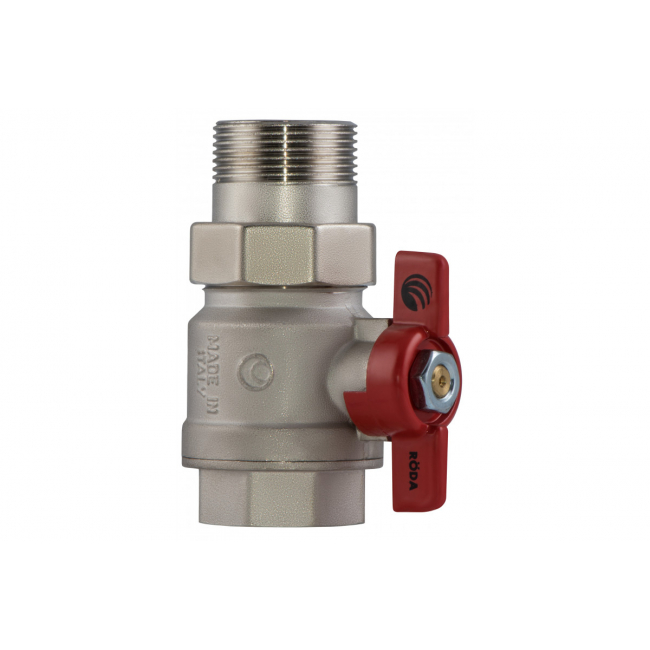

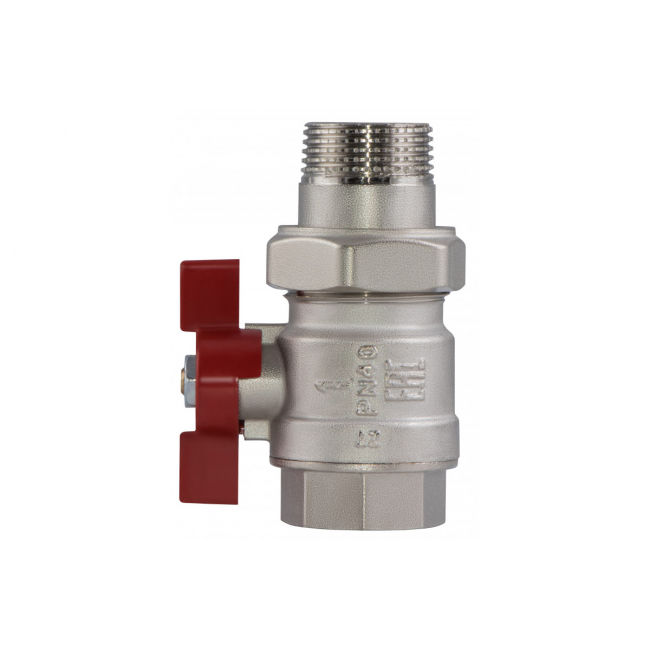

Ball valve with American butterfly 1"
(#1054)
Availability: Нет в наличии
Not available
690 ₴
Description Ball valve with American butterfly 1"
Ball valve with union nut "American" with a diameter of 1 inch with internal and external threads. Butterfly handle. The model is made with a full diameter bore, body, ball and stem are made of high quality CW614N brass. Consolidations of a union nut - paranitove, executed in the form of a cone. Provision is made for tightening the stem seal.
The 1" ball valve is made in Italy.
The body and sleeve are nickel plated, the ball is chrome plated.
690 ₴
Characteristics Ball valve with American butterfly 1"
| Characteristics | |
|---|---|
| Maximum working pressure, bar | 16 |
| Maximum operating temperature, C | 110 |
| Manufacturer country | Italy |
| Warranty, m | 12 |
| Shut-off valves | |
| Inner diameter | 1" |
| Housing material | Brass |
| Outside diameter | 1" |
| thread type | Outdoor/Indoor |
| Valve | Butterfly |
| Thread | UNI ISO 228/1 |
| Product information | |
| # | 1054 |
690 ₴
