Roda ELMAG 16 Plus
Dry heating element is more durable and reliable in operation, as it is placed in a protective flask and does not have direct contact with water
User friendly control panel with LED display
Official warranty from the manufacturer for 24 months. Service centers are located in in all major cities of Ukraine.
Description Roda ELMAG 16 Plus
The ELMAG electric boiler is designed for heating any type of premises. Three-phase alternating current 380 V is used as a power supply source. Boilers from 6 kW to 14 kW can be connected to a 220V network.
The control panel has a digital touch interface. The display shows the status of the boiler and error codes.
The innovative boiler heat exchanger is made of AL-Si-Mg alloy by casting. At the same time, the heating elements do not have contact with the heat carrier of the heating system, which significantly extends their service life.
The fully functional safety group consists of an automatic air vent valve, an overheating thermostat for the heat exchanger, an additional heating medium thermostat and a 3 bar safety valve and a diaphragm expansion vessel.
The built-in circulation pump with a power of 130 W has a three-stage speed controller, which makes it possible to reduce its speed in small heating systems. At maximum speed, the pump has enough power to work even in heating systems with high hydraulic resistance or very branched ones.
In order to save energy, it is recommended to connect a room thermostat to the boiler.
The boiler control board supports the connection of a WiFi adapter (separate accessory) for remote access and control of the boiler using an application on a smartphone.
Boiler models with the Plus index have the ability to connect an external DHW heating boiler. To do this, purchase an optional kit consisting of a three-way motorized valve and a boiler sensor. This allows you to heat hot water much faster than in classic electric storage boilers.
• Model range from 6 kW to 24 kW
• Electronic touch control panel
• Triac power control
• Auto-diagnostics and indication of the state of the boiler
• AL-Si-Mg heat exchanger with extended warranty.
• Dry type heating elements
• Integrated circulation pump
• Built-in security group
• Integrated expansion tank
• Connecting a room thermostat
• WiFi adapter connection
• It is possible to connect an external boiler (Plus version)

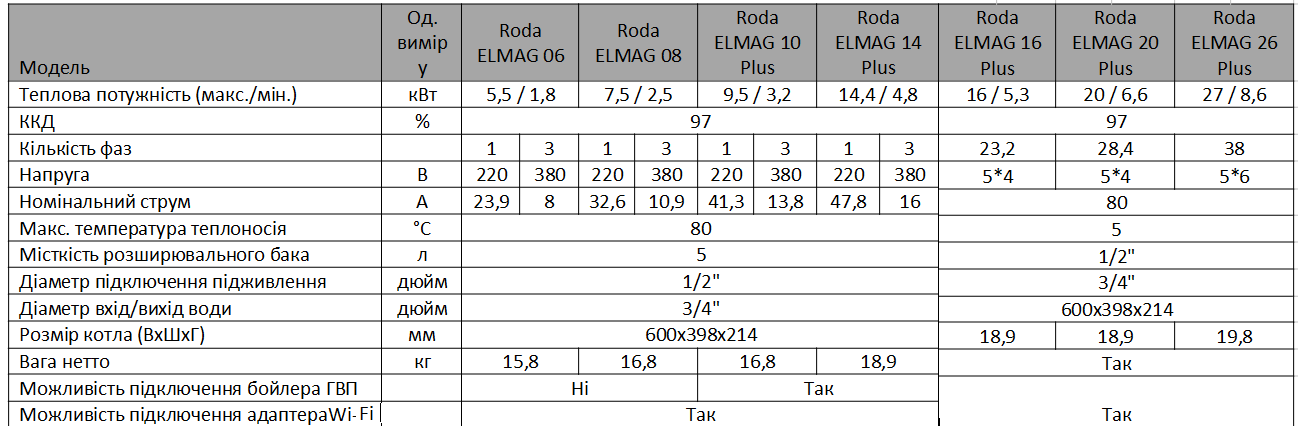

Specifications

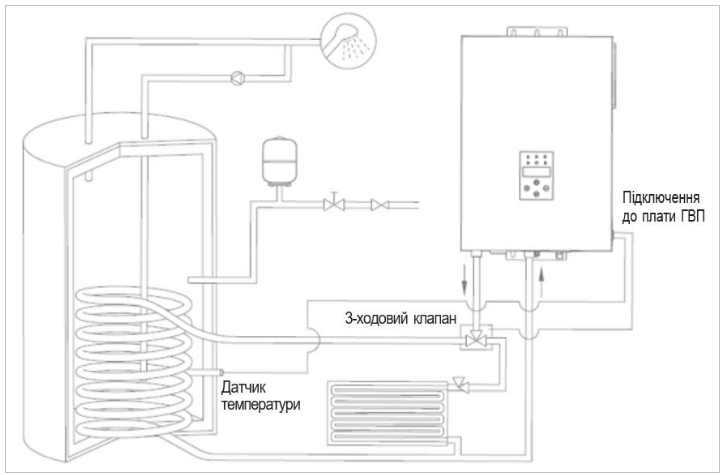

Scheme of connecting a DHW boiler to the Roda ELMAG boiler
Tags: Roda ELMAG 16 Plus
Characteristics Roda ELMAG 16 Plus
| Characteristics | |
|---|---|
| Electrical voltage, V | 380 |
| Expansion tank, l | 5 |
| Rated thermal power, kW | 16 |
| Efficiency, % | 97 |
| Maximum operating temperature, C | 80 |
| Manufacturer country | China |
| Size (length, width, height), mm | 600x398x214 |
