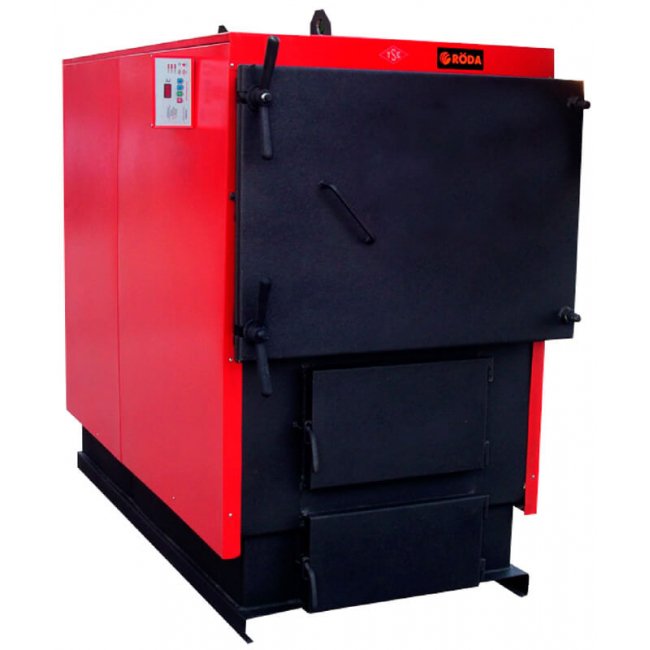

Boiler Roda RK3G-600

Steel, three running, industrial solid propellant RK3G 600 kW copper of RODA .

Designed for heating residential, industrial and administrative buildings.

The furnace space of the unit is formed by a water jacket and convective channels in the form of flame tubes made of high-quality boiler steel. Removable turbulators allow for easy cleaning of the flame tubes to maintain high heat removal rates, and the developed exchange surface allows for the most efficient use of fuel energy.

The moisture content of wood for combustion should not exceed 20%. This will not only increase the inter-furnace interval and the efficiency of solid fuel boilers RK3G-600, but also help to avoid condensation of water vapor from the combustion products.

The blower fan is controlled by an electronic board in order to maintain the heat carrier supply temperature set by the user. When the fan is turned off, the slide damper on the fan lowers and closes the air supply for combustion. Also, the standard board of the RK3G-600 boiler controls the operation of the circulation pump of the heating system.

Entering the parameters of the heating operation of the boiler is carried out using the buttons, the LCD display allows you to control the operation of fire-tube heating boilers and the current supply temperature to the system.

The automation of the RK3G-600 boiler allows you to connect a programmable or mechanical room thermostat to it to ensure the highest comfort in heated rooms.

• High quality boiler steel.
• Fire tube construction.
• Three passes along the flue gas path.
• Turbulators in flame tubes.
• High combustion efficiency.
• Digital control panel.
• Blower fan.
• High thermal power.
