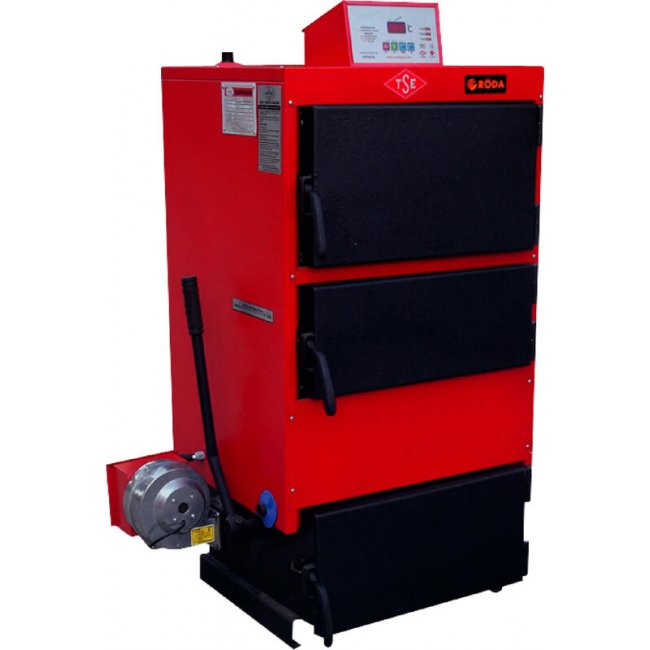

Boiler Roda RK3G-100

RK3G 100 kW. - solid fuel boiler 100 kW, steel 3-way solid fuel household boiler with manual fuel loading . The boilers are manufactured in accordance with TS EN 303-5 and can operate on various types of fractional fuels (pellets, fractionated coal). High quality boiler steel has excellent resistance to thermal corrosion.

The regulation of the combustion process is carried out by the control board of the solid fuel heating fire-tube boiler and the blower fan. The high efficiency of the RK3G-100 solid fuel boiler is achieved by its three-pass design and developed heat exchange surface. The turbulators located in the flame tubes on the side of the combustion products increase the heat transfer coefficient and the degree of fuel heat utilization.

Combustion air is supplied from two directions: the first - from below with the help of a fan, and the second - through the upper channel. Such an air supply system ensures complete combustion of the fuel, reduction of soot deposits and an increase in the efficiency of the combustion process.

• High quality boiler steel.
• Fire tube construction.
• Three passes along the flue gas path (except for RK3G-20).
• High combustion efficiency.
• Digital control panel.
• Blower fan.
• Turbulators in flame tubes.
