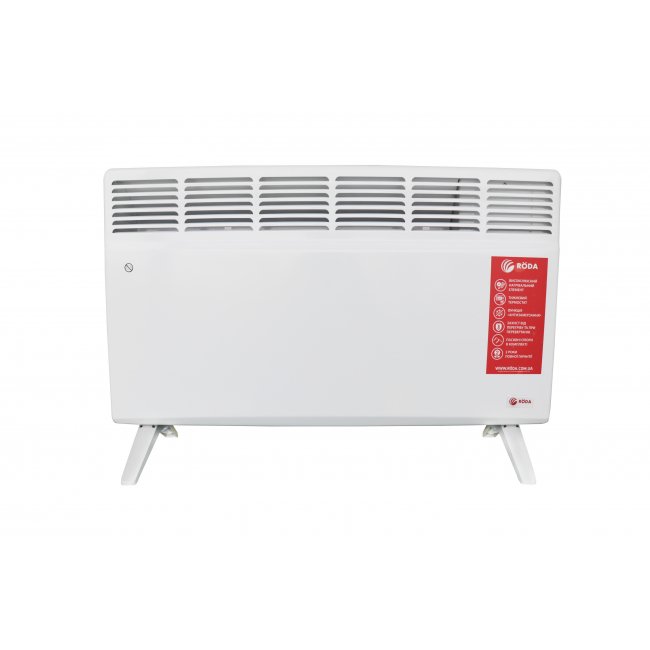

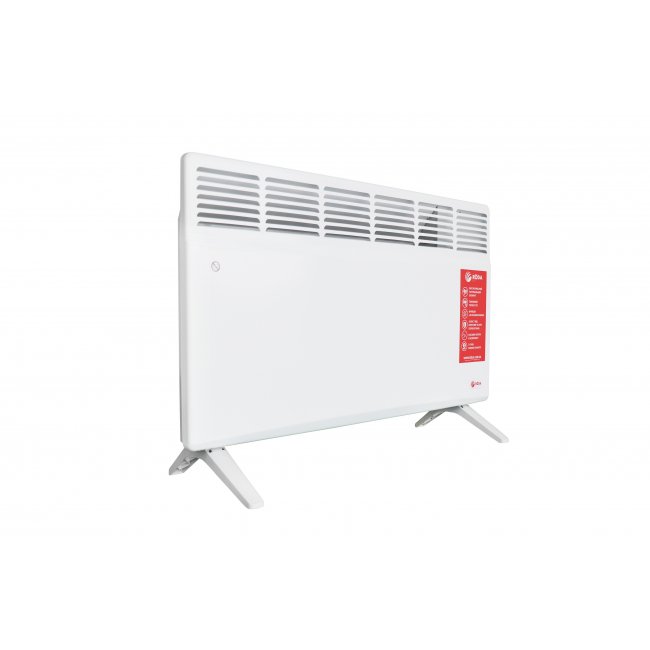

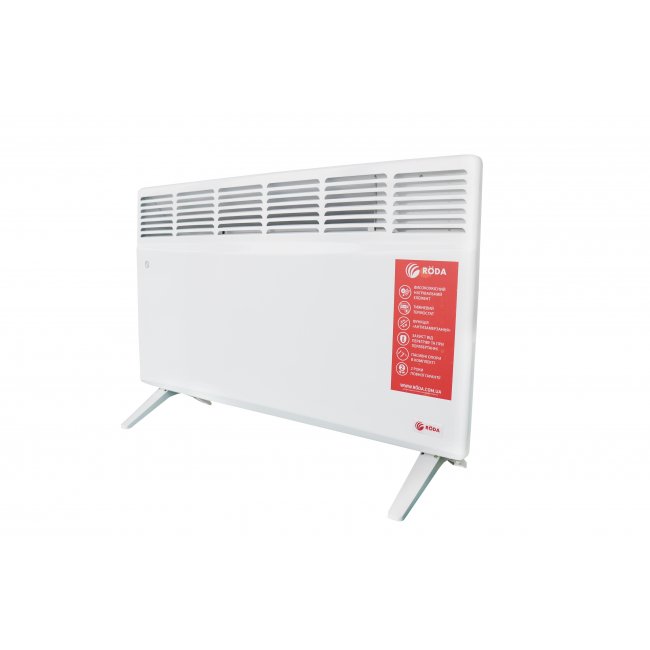

Convector Roda RB3-2000WF

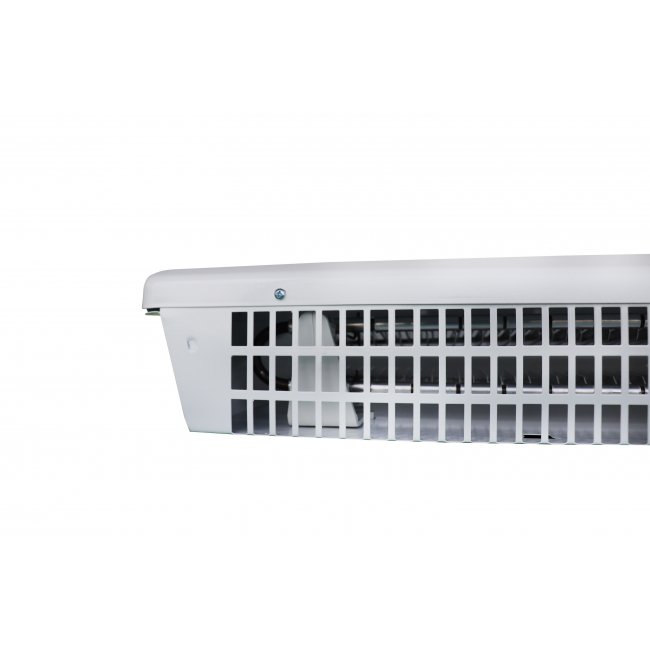

Convectors Roda RB3-2000WF are designed for operation in both normal and wet rooms. The heating element heats the cold air entering through the grate at the bottom of the case, and the warm air rises through the grate at the top of the case and heats the air in the room. Slim, elegant body looks best on the wall. All models are equipped with a thermostat with the ability to set and maintain the desired room heating temperature.

Electric convector RB3-2000WF of wall type is intended for use as a main or additional source of heat for heating residential, administrative and industrial premises. Heating the room due to natural convection of air.

The convector has an elegant design, small size, easy installation, and the ability to operate without human supervision. High reliability and safety are provided by the use of components from leading European companies. Degree of protection of the body of electric convectors IP 24. They are supplied with II (high) class of protection against electric shock, which guarantees additional safety of everyday use in bathrooms, shower rooms or rooms with high humidity.

The devices have a special design of closed tubular heating elements (TEH), which are equipped with special aluminum alloy lamellas that provide a relatively large area of heat radiation and a lower surface temperature. In electric convectors, air consumption, oxidative processes and thermal decomposition of organic dust are excluded. Electric convectors are painted with modern, high-temperature powder paints, which guarantee an aesthetic appearance throughout the entire service life.

The presence of a splash-proof design allows you to install convectors in wet rooms (bathrooms, cellars) and ensures safe operation of products in conditions of exposure to drops and splashes of water.

High reliability of the design, quality of components, 100% testing in the production process allows you to maintain a warranty period of 2 years. The high reliability of heaters of this type is confirmed by the absence of consumer failures.

Basic technical data of the Roda RB3-2000WF convector:

• Supply voltage 230 V/50 Hz
• Power: 500W/1000W/1500W/2000W

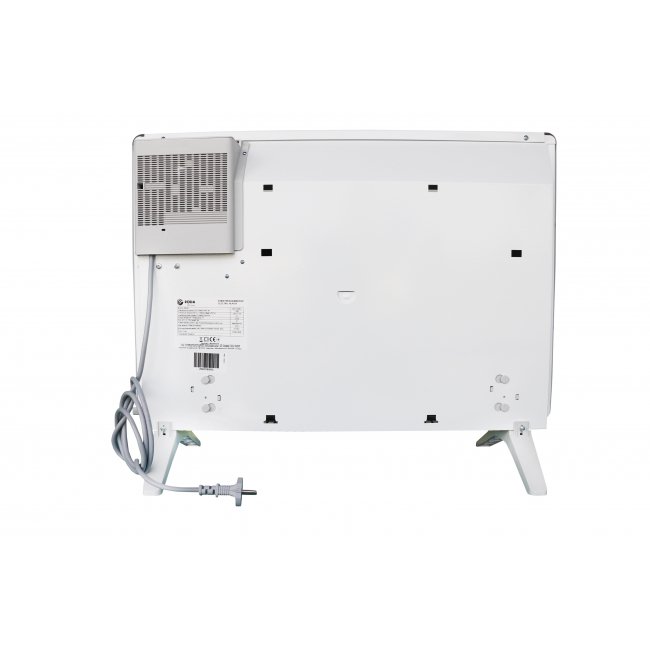

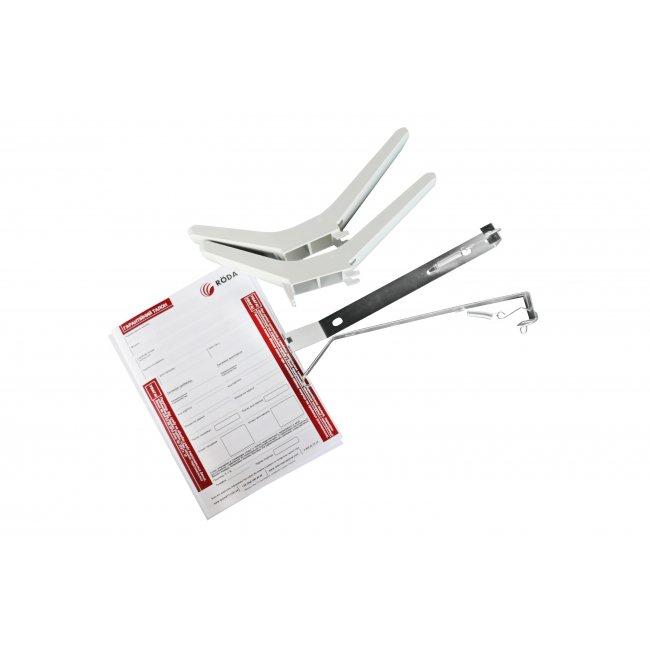

• Wall mounting with standard mounting brackets supplied
• Possibility of wall mounting with H-bracket with marking template function - optional.

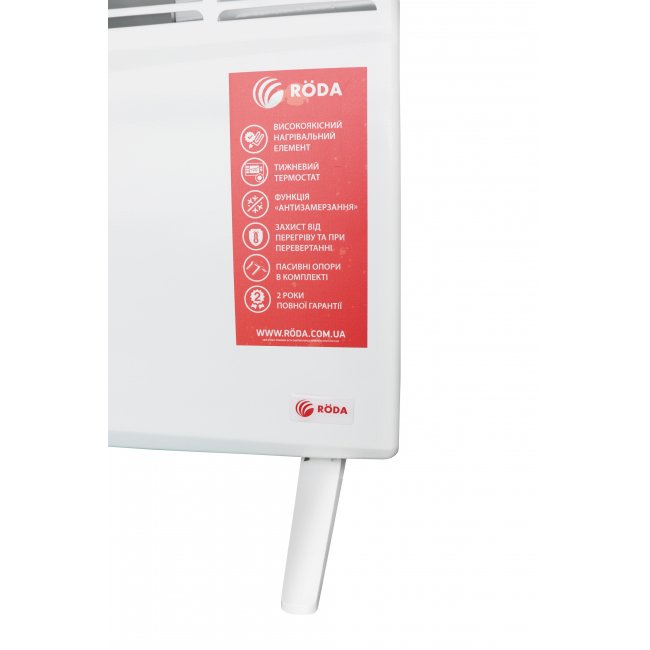

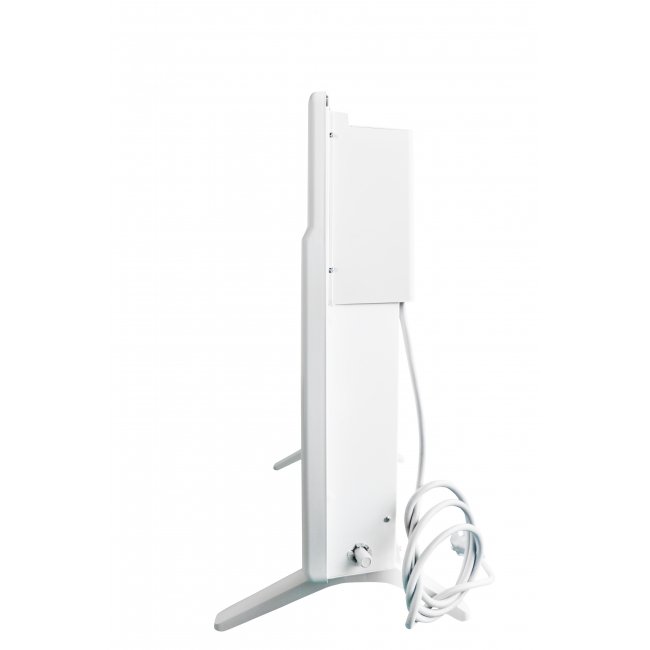

• Can be installed on the floor with a set of supports - optional
• Anti-frost function Anti-Frost, automatic maintenance of the room temperature (5 - 7) ˚С in the absence for a long time (more than 24 hours)
• overheat protection
• Automatic temperature maintenance with an accuracy of ±0.1˚С
• Degree of protection of the shell - IP24
• Tip-over protection, automatic heating shutdown when the appliance is tilted at an angle of 45˚ or more
• II class of protection against electric shock, does not require grounding
• Heating element - tubular (TEH) with an aluminum fin (safe, silent and durable)

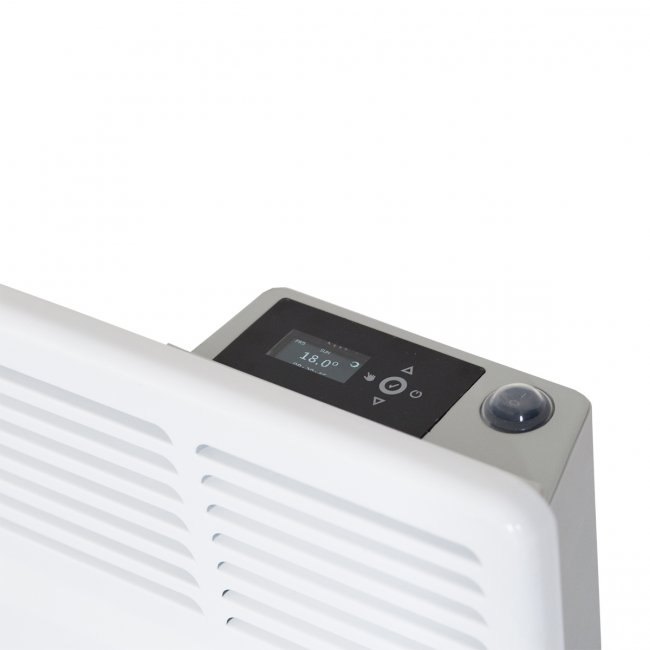

• Electronic thermostat:
• Graphic LCD display
• Touch panel, 5 control buttons
• Audible confirmation buzzer
• Control lock (Lock) - child protection
• Triac (inverter) control, completely silent
• Thermostat operating modes: Manual - "Anti-freezing", "Economy", "Comfort".
• Programming” (weekly timer).

There are five installed programs (“quick programming”) with typical schedules for changing COMFORT and ECONOMY modes during the day (Pr1...Pr5), as well as three programs that the user can compose for his individual needs (Pr6...Pr8). The minimum time interval is 1 hour.

Installed programs Roda RB3-2000WF:

Pr1 – recommended for permanent presence of the user in the room (Comfort from 5.00 to 23.00);

Pr2 - recommended for absence during the working day (Comfort from 5.00 to 9.00, from 17.00 to 23.00),

Pr3 - recommended for absence during the working day and when the user returns at lunchtime (Comfort from 5.00 to 9.00, from 12.00 to 14.00, from 17.00 to 23.00),

Pr4 - only COMFORT mode during the day,

Pr5 - only ECONOMY mode during the day.

Programs Рr6…Рr8, which can be changed by the user according to his/her needs, are the same as Pr5 according to the factory settings – permanent ECONO mode.

Smart Features Roda RB3-2000WF:

• “Advanced” (temporarily changing the heating mode without adjusting the current program using a separate button) - When the programming mode is selected, the Advance function allows you to start the next programmed period earlier. For example, if the heater is in Economy mode and you want to raise the temperature to Comfort, press the “Advanced” button. If the heater is in Comfort mode and you want to lower the temperature to Economy, press the "Advanced" button and it will switch to Economy until the next Comfort period starts. No program adjustment is required.
• Open window detection - when a sharp decrease in temperature is detected, for example, during ventilation, the heating mode of the room is stopped to save energy. Depreciation of the open window function is accompanied by a short buzzer sounding to notify of operation. The heating mode resumes automatically when the cooling of the room stops or if the user presses any button.
• Adaptive start control – The adaptive start heating function initiates an optimal start of heating in the "Programming" operating mode to reach the desired temperature at the right time. For example, the COMFORT period is programmed from 7 o'clock. When the adaptive start function is enabled, heating will start earlier (between 10 minutes and one hour) to reach the desired COMFORT temperature at 7:00. If the adaptive start function is disabled, heating will start at 7:00 am and the temperature set for COMFORT mode will be reached later.

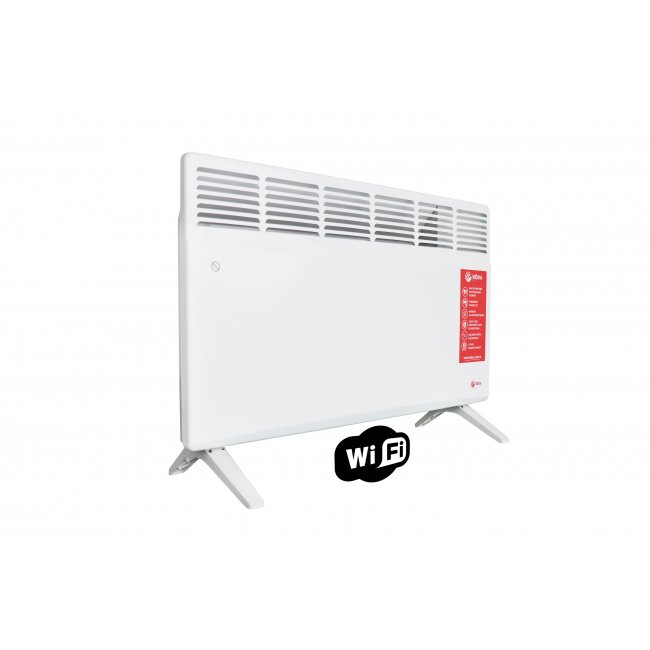

• Remote control using the Tuya Smart smart home application, via Wi-Fi (2.4 GHz, WPA2, 802.11 b/g/n). The app can be downloaded from Google Play and Apple Store. The consumer control device must support Android 4.0/IOS 7.0 or above.
