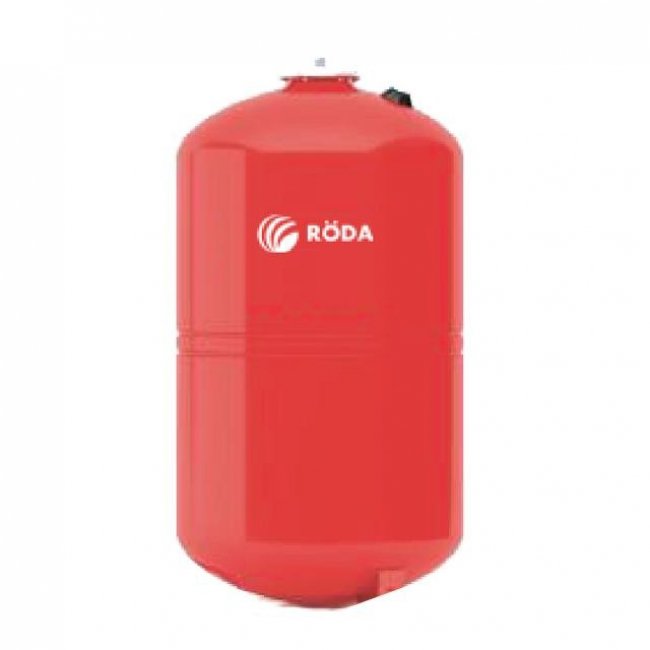

Compensation tank 18 liters RCTH0018RV

Features of Röda expansion tanks:

- Removable membrane in all types of tanks.

- Carbon steel body for long life.

- The use of epoxidized polyester paint prevents corrosion.

Expansion tanks of the RCTH****R, RCTH****L, RCTS****R series are an important element of all engineering systems in which the liquid heating process takes place. Expansion tanks are designed to compensate for the volume of coolant that expands during the heating process.

Expansion tank selection For the correct selection of the expansion tank, the following formula should be applied:

V=(KxVs)/(1-((Pi+1)/(Pf+1)), where:

V is the volume of the expansion tank, l;

K is the expansion coefficient of the coolant (Table 1 for water);

Vs is the volume of the system, l;

Pi is the pressure in the air chamber, bar;

Pf is the maximum coolant pressure in the system, bar.
