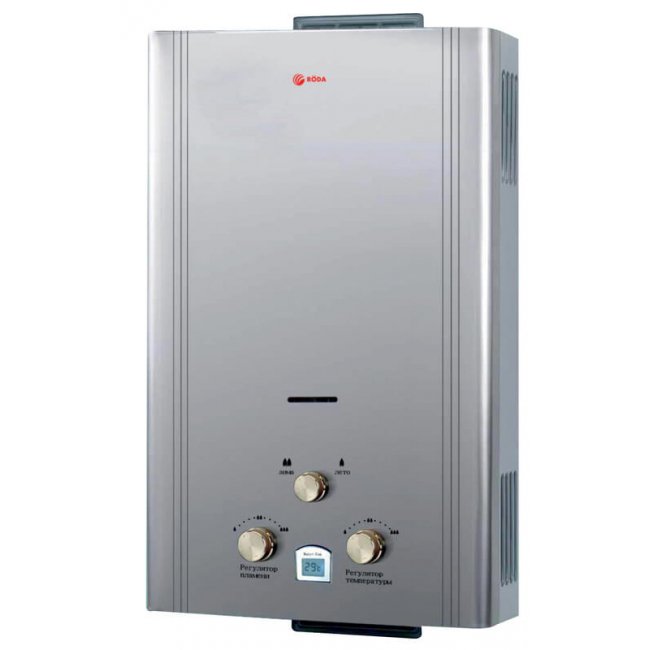

JSD20-A6
High-quality copper heat exchanger with heat-resistant coating
Electric ignition and flame control
Water temperature display
Description JSD20-A6
- High-quality copper heat exchanger with a heat-resistant coating.
- Electrical ignition and flame control.
- Traction control sensor.
- Indication of hot water temperature and blocking codes (model JSD20-A1).
- Compact dimensions.
- Separate power and temperature control.
- Open combustion chamber.
- Powered by two 1.5 V batteries.
Safety first
RÖDA values the health of its customers, which is why the new instantaneous water heaters JSD20-A6 are equipped with an innovative smoke exhaust control system. The time of emergency shutdown of gas in the event of a loss of thrust is only 30 seconds at a standardized 60 s. (According to DSTU 2356-94 "Household gas flow water heaters"). This is certainly one of the best indicators for modern water heaters with an open combustion chamber. Thanks to the new draft control system, the risk of carbon monoxide entering the premises is minimized and you no longer have to worry about your loved ones.
Adaptation JSD20-A6 to harsh working conditions
RÖDA instantaneous water heaters are specially designed to work with low gas pressure, which is typical for the CIS countries. The gas-water block of the column is not picky about the quality of the gas and has excellent sensitivity to opening a hot water tap.
The high-quality coating of the heat exchanger prevents its corrosion and burnout even with intensive use.
Reliability is our calling
With the new RÖDA water heaters you will forget that you have a water heater. After all, what does not break does not require attention.
Installation flexibility
The compact size and ultra-slim body will allow the RÖDA water heater to fit into any design. And the classic design of the water heater will never lose its relevance.
Forget extension cords
The use of two 1.5 V batteries as a power source allows you to be independent of the location of the outlet, and also completely eliminates the risk of electric shock.
Let's save together with JSD20-A6
Classic geysers have an ignition burner that burns constantly and consumes natural gas. The new RÖDA gas water heaters JSD20-A6 are equipped with electric ignition and the flame appears only when the hot water tap is opened. Thus, you do not throw money down the chimney and heat the street.
Tags: JSD
Characteristics JSD20-A6
| Characteristics | |
|---|---|
| Control | mechanical |
| The combustion chamber | open |
| thrust | Natural |
| Heat exchanger material | Copper |
| Productivity of hot water l/min. at delta t=25C | 10 |
| Size (width, depth, height), mm | 340*140*590 |
| Ignition | Automatic (Electronic) |
| Installation | wall |
| Manufacturer country | China |
| power, kWt | 20 |
| Weight, kg | 7.9 |
| Warranty, m | 12 |
| Product information | |
| # | 1626 |
