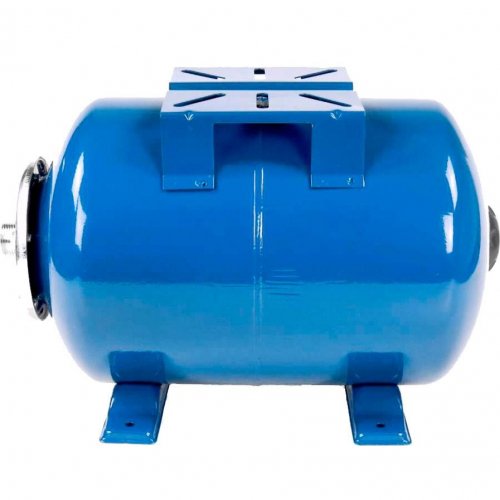

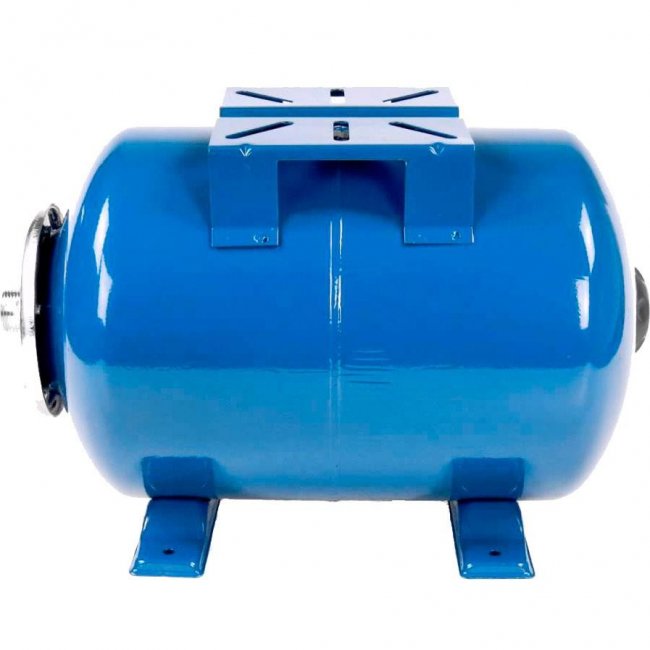

RCTC0100LVH - Horizontal accumulator 100 liters

Features of the Röda RCTC0100LVH hydraulic accumulator

• Removable tank membranes .
• Carbon steel body extends the service life.
• The use of epoxidized polyester paint prevents corrosion.

RCTC0100LVH is a hydraulic accumulator of the RCTC***R, RCTC****L series designed for stable water supply under a set pressure. In addition, they minimize the number of cycles on and off the pump, which contributes to the duration of its operation.

Selection of accumulator RCTC0100LVH

For the correct choice of a hydraulic accumulator, the following formula should be used: V = K x A x ((P max + 1) x (Pmin + 1) / ( P max - P min) x (P pres + 1)), where:

• V - volume of expansion tanks , l;
• K - Pump coefficient (Table 2);
• A - average pump performance (l / min);
• P max - maximum pressure in the system, bar;
• P min - minimum pressure in the system, bar;
• P pres is the pressure in the air chamber, bar.
