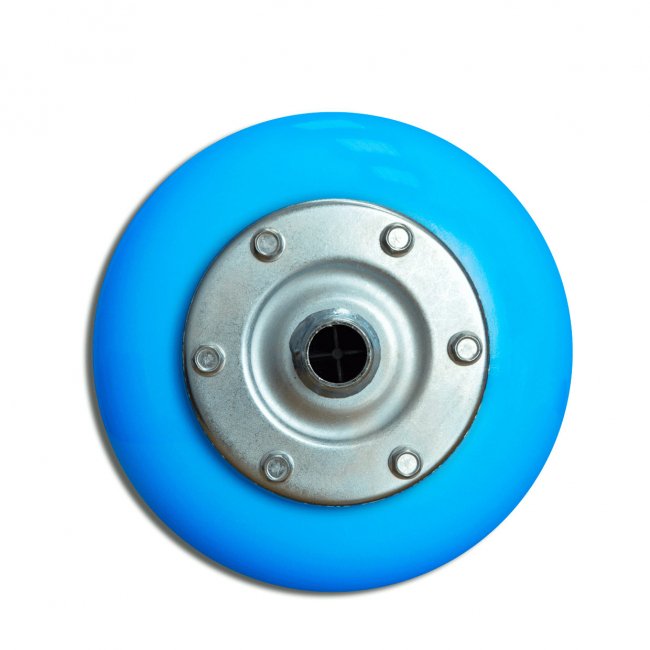

RCTC0018RV - 18 liter hydraulic accumulator

Accumulator RCTC0018RV Röda - Features

• Removable membrane in all types of expansion tanks .
• Carbon steel body for long service life.
• The use of epoxidized polyester paint prevents corrosion.

RCTC0018RV is a hydraulic accumulator of the RCTC***R, RCTC****L series designed for stable water supply under a set pressure. Also, they minimize the number of cycles on and off the pump, which contributes to the duration of its operation.

Selection of accumulators RCTC0018RV

For the correct selection of a hydraulic accumulator, the following formula should be used: V = K x A x ((P max + 1) x (Pmin + 1) / ( P max - P min) x (P pres + 1)), where:

• V is the volume of the accumulator, l;
• K - Pump coefficient (Table 2);
• A - average pump performance (l / min);
• P max - maximum pressure in the system, bar;
• P min - minimum pressure in the system, bar;
• P pres is the pressure in the air chamber, bar.
