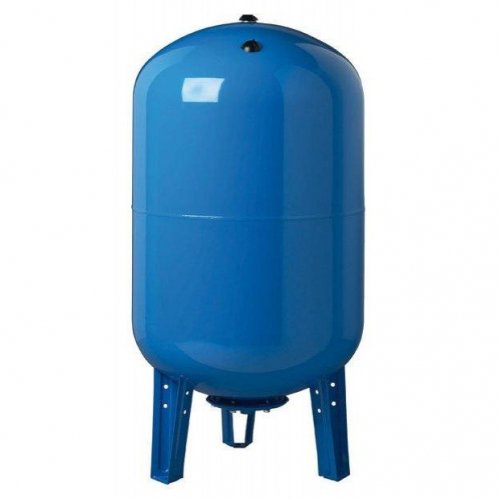

RCTC0100LV - 100 liter hydraulic accumulator with legs

Features of the hydraulic accumulator Röda RCTC0100LV 100 liters:

• Removable membrane in all types of tanks.
• Carbon steel body for long service life.
• The use of epoxidized polyester paint prevents corrosion.

RCTC***R, RCTC****L hydraulic accumulators are designed for stable water supply under the set pressure. Also, they minimize the number of cycles on and off the pump, which contributes to the duration of its operation.

Selection of accumulator ( Expansion tank )

For the correct selection of a hydraulic accumulator, the following formula should be used: V = K x A x ((P max + 1) x (P min + 1) / ( P max - P min) x (P pres + 1)) , where:

• V is the volume of the accumulator, l;
• K - Pump coefficient (Table 2);
• A - average pump performance (l / min);
• P max - maximum pressure in the system, bar;
• P min - minimum pressure in the system, bar;
• P pres is the pressure in the air chamber, bar.
