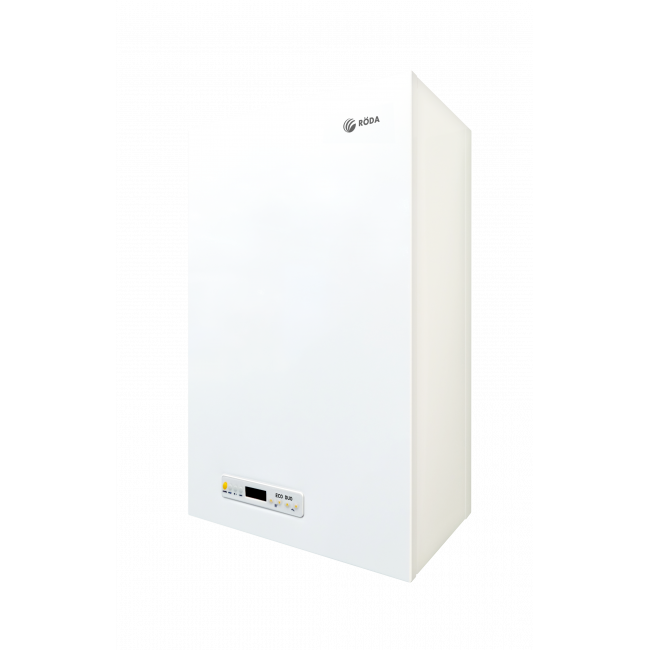

Gas boiler Roda Eco Duo CS 24

Boiler Roda ECO DUO CS 24 is a new generation of hinged double-circuit boilers designed for heating and hot water supply of apartments and private houses. The boiler has two separate heat exchangers: a copper primary heat exchanger with a protective coating and a stainless steel secondary DHW heat exchanger. This design allows the boiler to be used in areas with increased hardness of tap water. The increased area of the secondary heat exchanger (16 plates) extends its service life and improves performance in DHW mode.

The boiler has a closed combustion chamber and forced smoke removal using a built-in fan (exhaust fan). It is allowed to connect both a coaxial chimney and separate channels for air intake and emission of combustion products. The closed combustion chamber is sealed by a separate steel panel.

An enlarged expansion tank with a volume of 7 liters allows the boiler to be used for heating in systems up to 120 liters without the need to install an additional expansion tank.

The boiler control board supports operation with a room thermostat. If necessary, an outside temperature sensor can be connected to the boiler and climate control can be activated.

Boilers ECO DUO belong to the class of boilers with high efficiency.

• Closed combustion chamber.
• Primary copper heat exchanger.
• The secondary heat exchanger from stainless steel of the increased area (16 plates).
• Electric drive of the three-way valve.
• Electronic ignition and flame control.
• Smooth continuous power modulation.
• climate regulation.
• Informative LCD display.
• Status autodiagnosis.
• Protection against jamming of the pump.
• Protection against frequent switching on "Antifast".
• Protection against overheating of the heat exchanger.
• Frost protection "Antifreeze".
• Traction loss protection.
• Protection against loss of gas.
• Possibility of conversion to liquefied gas.
• Connecting a room thermostat.
